RadFA, woven fabric winding machine

2026ESL program, production toolingStructures and mechanical design / Avionics and electronics
In design, nothing built yet
Skin length
5 m
Diameter
200 mm
Stepper motors
3
Controller
ESP32-S3

I am designing it. Nothing is built yet.

01

Need

The composite skins of the ESL rockets are 5 m long with a 200 mm diameter, too large for the machine the society has. RadFA is meant to make them.

02

Architecture

Three stepper motors, controlled by an ESP32-S3, turn the mandrel and move the roller carriage. Simplified CAD in Fusion 360.

03

Control board

I designed the first version of the control board.

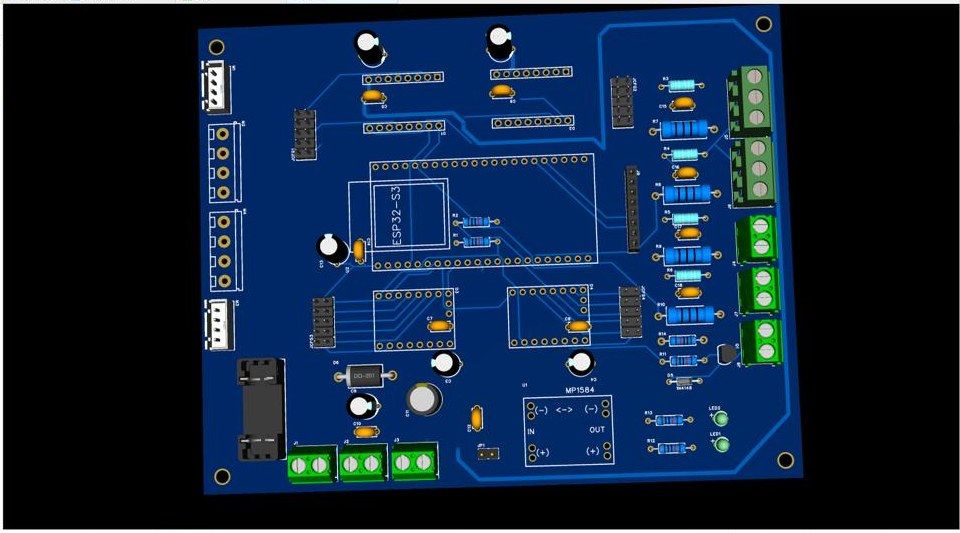

PCB view of the RadFA control board, version 1
Control board v1, PCB view in EasyEDA

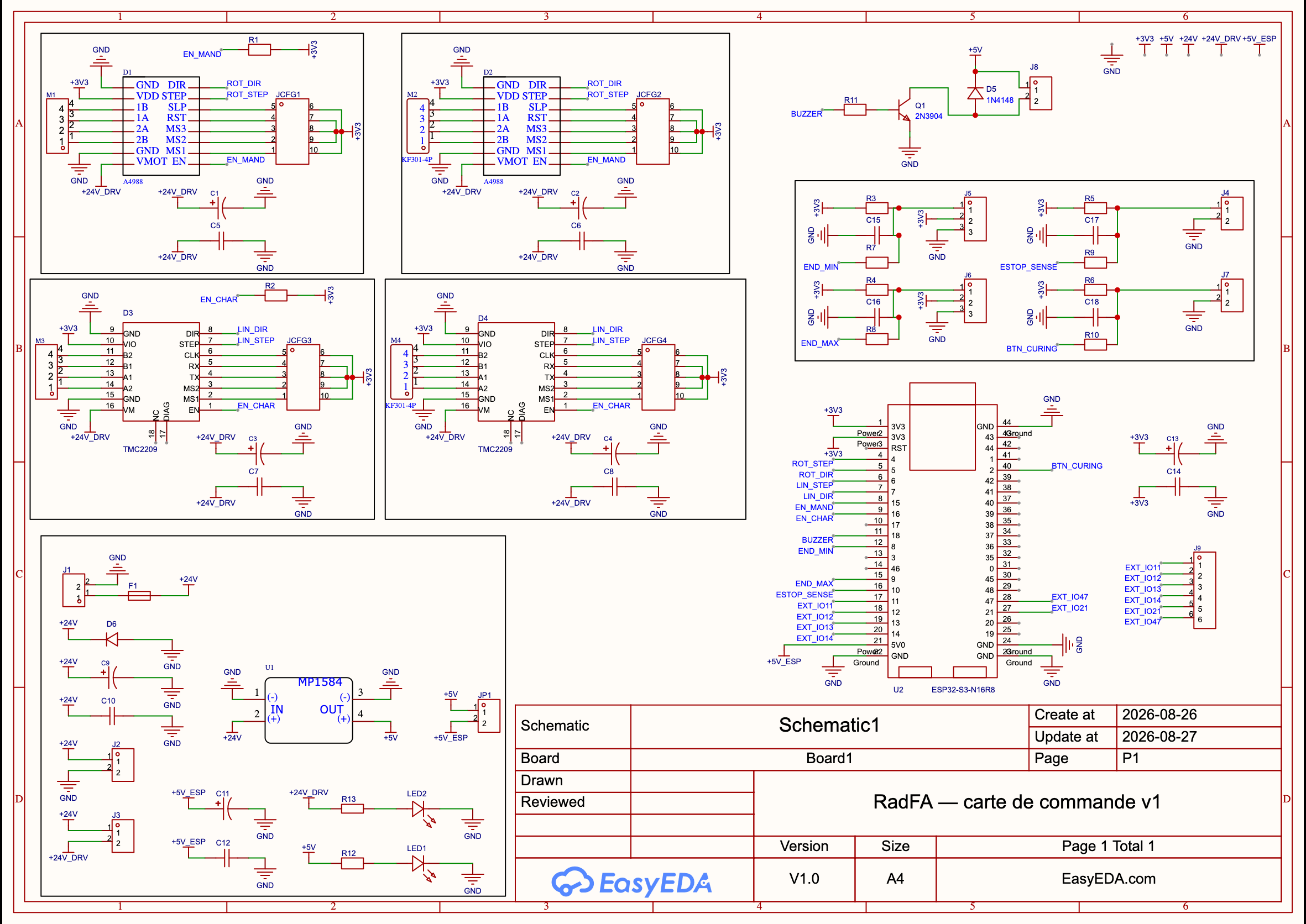

Schematic of the RadFA control board, version 1
Control board v1, schematic in EasyEDA
04

Status

Design in progress, manufacturing comes next.
